CIT cable outstanding and excellent abrasion resistance, dielectric strength, chemical resistance, thermal endurance in long. protects against corrosion.
Polyimide (PI) is a group of high performing polymers known for their exceptional chemical, thermal, and mechanical performance properties. These materials demonstrate exceptional thermal stability in high and low temperatures and are extremely flame resistant. PI , CITCABLE PI / TEFLON composite, is a high lubricity polyimide blend for applications that require lower surface friction yet do not require the performance of pure TEFLON. Polyimide maintains broad chemical resistance and good dielectric properties in addition to its reduced coefficient of friction

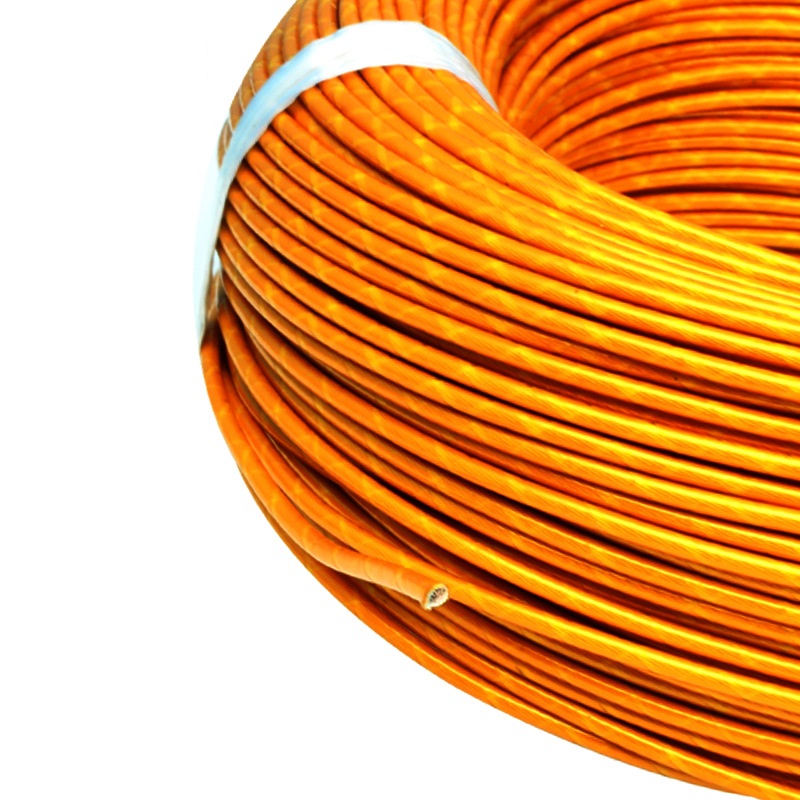

High Temperature PI Cable is designed with high-performance insulation materials that provide exceptional thermal resistance. This allows the cable to operate in temperatures exceeding 240°C, making it ideal for use in extreme heat environments such as power plants, automotive engines, and aerospace systems. The durable outer layer ensures that the cable maintains its performance even under continuous exposure to high temperatures, preventing failures and enhancing the longevity of your equipment.
polyimide wire can be produced in extremely small dimensions, yet it retains strength and pushability whether for vascular catheters or medical deployments. Polyimide can also be provided as a coating for over-the-PI insulated wire applications. Polyimide coating for electrical leads provides insulation in addition to a low-friction surface for easier positioning or placement. Polyimide can also be provided in a layered composite-type construction to further tailor tubing or coating properties
Features
Application
1- Cryogenic storage system Wire
2- Highly Flexible Multi-strand Types
3- Liquid helium Sensor cable
4- Liquid nitrogen power cable
5- Cryogenic pumps Cable
6- Cryogenic liquid Cable
7- The original UHV Cable
8- Medical Cable
9- Aerospace Cable
10- Automotive Cable
11- Electronics Cable
12- Chemical Cable
12- Sensors Cable, and more Cable
| Construction | Tin Plated Copper (TPC) Silver Plated Copper (SPC) Silver Plated Copper Covered Steel (SCCS) Copper Covered Steel (CCS) |
| Insulation | FEP |
| Coating | PI/PFA |
| Inner Screen | Braided screen of silver plated copper wire 95% |
| Inner Jacket | PI/PTFE |
| Outer Screen | Braided screen of silver plated copper wire 95% |
| OD | 8mm |
| Conductor to Inner Screen | ＜90pF/m |
| Inner Screenr to Outer Screen | ＜200pF/m |
| Noise Level (pk - pk ) | ≤1 mV |
| Vp | 56% |
| Colour code | Natural |
| Sheath | Natural |
CITCABLE offre i tipi originali e un'ampia gamma di nuovi tipi di cavi con rivestimento in poliimmide per l'impiego in UHV e alto vuoto.
Dettagli
CITCABLE offre i tipi originali e un'ampia gamma di nuovi tipi di fili TPI per l'impiego in UHV e alto vuoto. Conformi alla direttiva RoHS.
Dettagli
CIT cable outstanding and excellent abrasion resistance, dielectric strength, chemical resistance, thermal endurance in long. protects against corrosion. Polyimide (PI) is a group of high performing polymers known for their exceptional chemical, thermal, and mechanical performance properties. Polyimides generally demonstrate excellent thermal stability in high as well as low temperatures. Polyimides also exhibit broad chemical resistance and good dielectric properties. Polyimides are poor conductors of heat and are highly disinclined to burn; they are also radiation resistant. These properties and others have made polyimides widely used in industries including medical, aerospace, automotive, electronics, chemical, sensors, and more
Dettagli
CIT cable outstanding and excellent abrasion resistance, dielectric strength, chemical resistance, thermal endurance in long. protects against corrosion. Polyimide (PI) is a group of high performing polymers known for their exceptional chemical, thermal, and mechanical performance properties. These materials demonstrate exceptional thermal stability in high and low temperatures and are extremely flame resistant. PI , CITCABLE PI / TEFLON composite, is a high lubricity polyimide blend for applications that require lower surface friction yet do not require the performance of pure TEFLON. Polyimide maintains broad chemical resistance and good dielectric properties in addition to its reduced coefficient of friction
Dettagli
CIT cable outstanding and excellent abrasion resistance, dielectric strength, chemical resistance, thermal endurance in long. protects against corrosion. Polyimide (PI) is a group of high performing polymers known for their exceptional chemical, thermal, and mechanical performance properties. These materials demonstrate exceptional thermal stability in high and low temperatures and are extremely flame resistant. PI , CITCABLE PI / TEFLON composite, is a high lubricity polyimide blend for applications that require lower surface friction yet do not require the performance of pure TEFLON. Polyimide maintains broad chemical resistance and good dielectric properties in addition to its reduced coefficient of friction
Dettagli
Il filo con isolamento speciale CITCABLE è disponibile su richiesta; possiamo estrudere questo materiale in forma tonda e quadrata. Possiamo anche fornire tutti i fili con isolamento speciale in versione trefolata e in altri formati.
